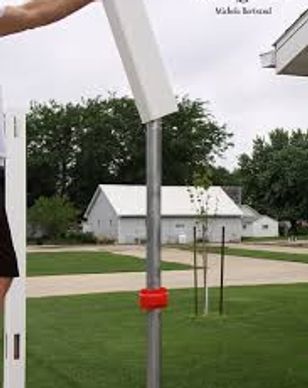

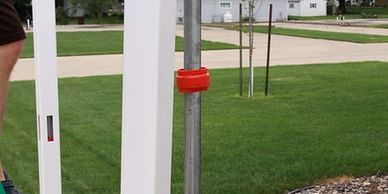

Post and Collar System of Installation

This system uses a unique and easy method of installing your fence. It works for any style or model of PVC fencing. Here are the advantages.

• no need to dig holes in your lawn - no mess!
• no need to buy or mix concrete, this method insures your posts are solid and securely placed in the ground
• much quicker method of installation - saves labor costs
• saves on cost of PVC materials as shorter less expensive PVC posts are required - bottom of post is placed slightly below ground lever for appearance purposes only - saves about 2' of PVC post costs
• much easier to achieve post alignment with the adjustable collars.
• although the cost of materials is somewhat more the final cost of your fence is similia to what you would have spent to dig holes and place posts in concrete.

1. Galvanized steel 2 5/8" diameter cut to appropriate length to match height of your fence - usually 2' - 2 1/2' longer then the height of the fence you are installing.

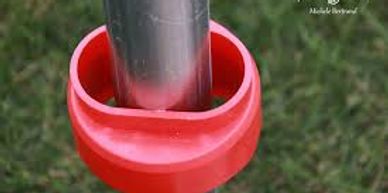

2. Two poly vinyl sockets designed to fit over the metal galvanized post.
3. A sturdy string line at least 100 feet in length. We use two, from one end post to the other end post in the line. The two are place screwed to an installed collar on the end posts at levels you plan to install both top and bottom levels of the collars. Be careful that that level does not match level of the holes in posts as the collars will restrict insertion of rails.
4. A post pounder and air compressor or a gas powered post pounder (our rental dept has this item available to rent if needed)
5. A level preferably 5' long
6. Battery powered drill to insert screws
7. A supply of hex head screws - we use #10.s about 1 1/2" long.
8. A shovel to dig a slight hole around the pounded post so that the bottom end of your 5" x 5" PVC sleeve is an inch or so below finished grade
9. A trained "eye" to double check all levels and elevations to achieve that "perfect" look

• This system eliminates the necessity for digging posts holes and in general making a mess on your lawn and also the expense of buying, mixing and installing concrete
• the system makes installing much easier and faster - less labor
• this system of installation makes any repairs that may be necessary in the future to your fence project very easy to accomplish
• This system requires a post pounder. Several different types are available from your local rental yard.
• We also have the necessary equipment available for rental

U-tube is an excellent source of valuable instructional guidance to help you achieve professional quality install for the DIY kind of guy.

Here are three informative videos that may help you understand installation methods used by our crews where we are contracted to install your fence

https://youtu.be/GtFOjIwDAeE

https://youtu.be/5cXAe1VzfqI

https://youtu.be/CadUkeC5O34

Our  preferred method of installation is this method of installation. Our crews are trained to use this method saving time and the associated cost of labor for the client. We also use a network of qualified dealers and installers to provide the same professional installation services in areas our crews are unable to service.

If your a fencing company and would like to join our network of dealers and installer give us a call today at 714 325 2123

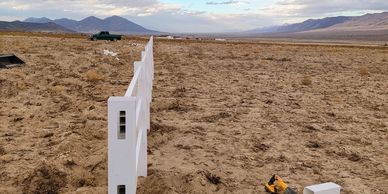

There is nothing as pleasing as to look down a fence line and see every post exactly in a straight line and the top of each post at the same consistent level or if your site has difference in elevation a consistent curvature to the top of adjoining posts.

Achieving this goal is the responsibility of our trained crews or network of qualified installers.

As a DIY kind of guy if you have a good eye and follow our easy to follow instruction guide you too will achieve the same  professional installation results.

 We offer free assistance to both our network of installers and dealers as well as any of our retail  (DIY) clients

We can be contacted by  phone or by text at 714 325 2123 at any daylight time any time of the week.

We are here to help you!
